INTRODUCTION
Page2
Silicone Rubber Cold-shrinkable Outdoor Termination Series Rated Voltage from 6kV up to 35kV

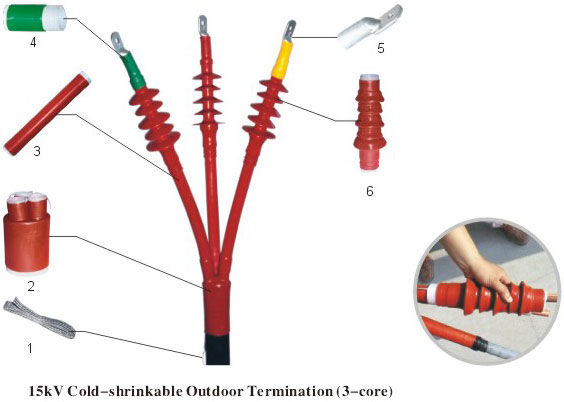

1.Grounding conductor
2.Silicone rubber cold-shrinkable space gloves
3.Silicone rubber cold-shrinkable insulation tube
4.Silicone rubber cold-shrinkable phase color tube
5.Connector
6.Silicone rubber cold-shrinkable outdoor    termination
35kV Outdoor Temination(single core)

    Applications

     Cold-shrinkable outdoor terminations are suitable for 6kV, 15kV and 35kV extruded dielectric power cable and successful operation under either intense solar radiation or heavy industrial pollution service conditions.

   Essential Technical Date
Type
AC Withstand VoltageTest [5min,kV]
Heating Cycles
Test
Dynamic
Short-cricuit
Test
[108.5kA,10ms]
Humidity Test [11kV,300h]
Impulse Volatage Withstand
under 100¡æ
[kV]
Partial Discharge Test under 100¡æ
[15kV,pC]
NLS15
≥39
Passed
No Destruction
No Breakdown
No Erosion
95,¡À10 times
No Breakdown
¡Ü2
Type
AC Withstand VoltageTest [5min,kV]
Heating Cycles
Test
Dynamic
Short-cricuit
Test
[108.5kA,10ms]
Humidity Test [11kV,300h]
Impulse Volatage Withstand
under 100¡æ
[kV]
Partial Discharge Test under 100¡æ
[15kV,pC]
WLS15
≥39
Passed
No Destruction
No Breakdown
No Erosion
95,¡À10 times
No Breakdown
¡Ü2
