INTRODUCTION |
|
■ Meet the strictest standards in the world------IEC 60502 and IEEE 386
■ Very safely and quickly for workers rushing to repair faults living-work on-site when the over--head distribution lines breakdown, save your time and save your money
■ Electrical field analysis by finite elements method, SR/EPR injected automatically and one-piece molding have stress controlled cone more effectively
■ Elastic SR/EPR construction for lightness with longevity, and safe to environment

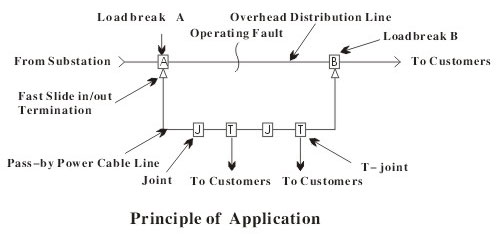

■ Connecting power cables and adjusting the length of the cable optionally as well as branching the power cable lines to other customers perfectly, supply electrical power more safely, more reliably and more economically
■ Very safely and quickly for workers rushing to repair faults living-work on-site when the over--head distribution lines breakdown, save your time and save your money
■ Electrical field analysis by finite elements method, SR/EPR injected automatically and one-piece molding have stress controlled cone more effectively
■ Elastic SR/EPR construction for lightness with longevity, and safe to environment
■ Connecting power cables and adjusting the length of the cable optionally as well as branching the power cable lines to other customers perfectly, supply electrical power more safely, more reliably and more economically

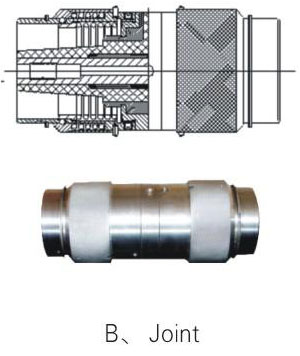

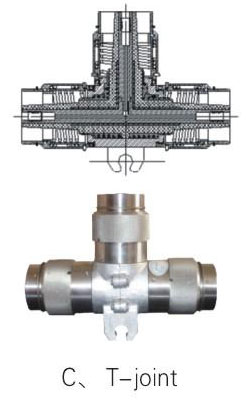

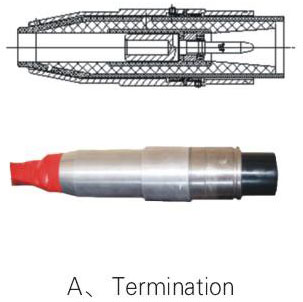

Outline of Assembly

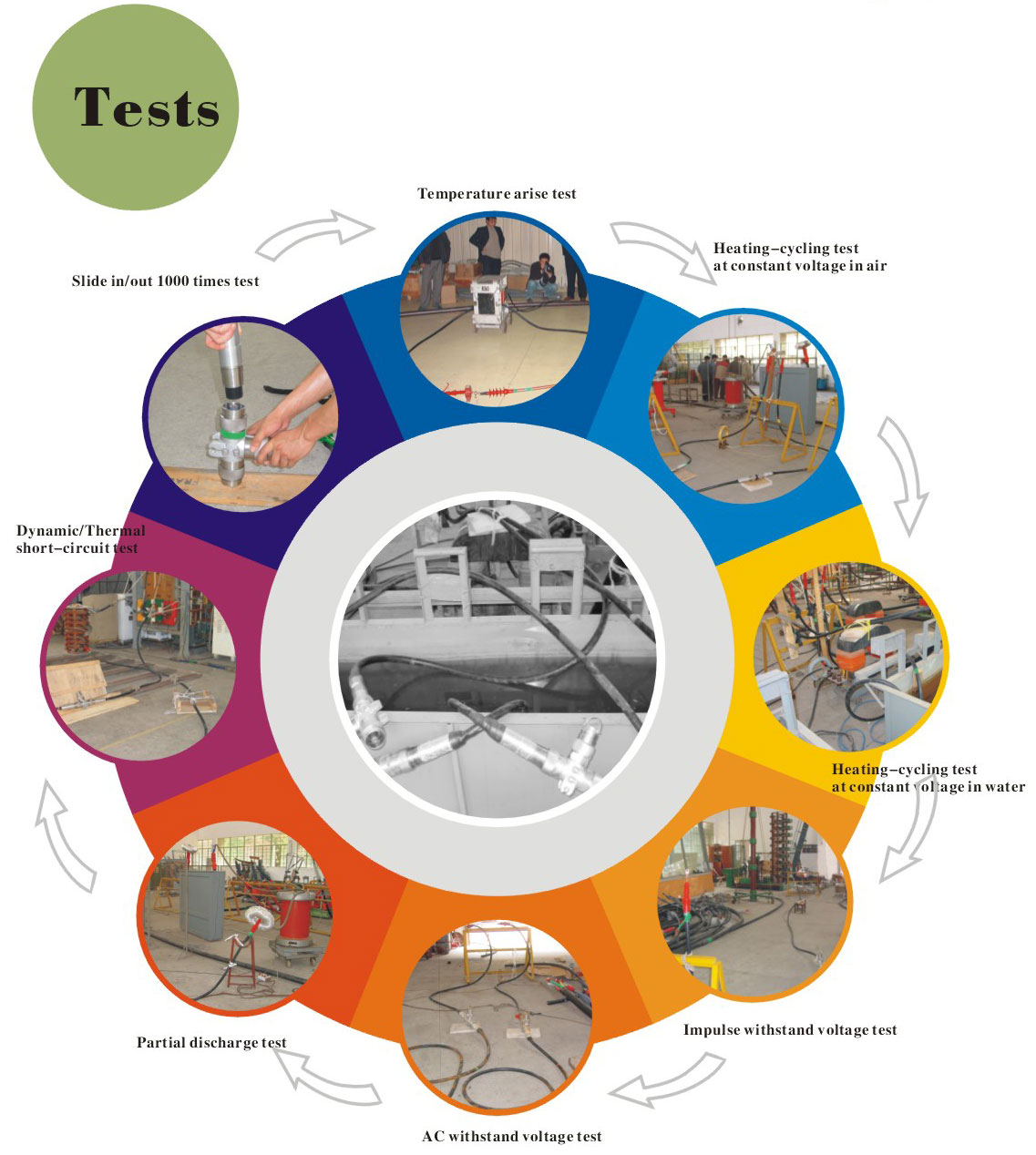

| Essential Technical Data | ||||
Type |
AC Withstand for 1min |
Partial Discharge |
Heating Cycles Voltage Test [200A, 30 cycles] |
Partial Discharge Test at 95 ℃ ～ 100 ℃ |
Fast slide in/out separable connectors |
No breakdown occurred on the combination samples at 45kV |
The magnitude of the discharge of the combination samples didn't exceed 5pC at 15kV |
No breakdown occurred on the combination samples at 22kV |
The magnitude of the discharge of the combination samples didn't exceed 5pC at 15kV |
No breakdown |
≤ 4pC |
No breakdown |
≤ 4pC |
|
Thermal Short-circuit test |
Dynamic Short-circuit test |
Fatigue Test |
Partial Discharge |
|
No transfigure and welding shall occur on all parts at 4.4kA, 2s |
No transfigure and welding shall occur on all parts at 15.6kA, 10ms, 1s |
Temperature arise didn't exceed 55K at 200A after sliding in and out 1000 times |
The magnitude of the discharge of the combination samples didn't exceed 5pC at 15kV, after sliding in and out 1000 times |
|
No transfigure and welding occurred |
No transfigure and welding occurred |
≤ 29K |
≤ 4pC |
|
